How to Control Pie Chart Colos? |
 |
 |
|
Dear All,
how I can control colors of Pie chart.? I want to the Pie chart always present the same color for the same selected value.
For instance, I am assessing process automation status for many Divisions, I have three evaluation values; fully automated process, partially automated process and Manual Process. when I filter the Pie Chart base on Division names, a different colors appears for the same value.
Please let me know how I can solve this issue.
Appreciate your support.
| Comments |
You must add a column in your feed, where you can add the colors for your values. I have done it like this:
1. copy the column with the values
2. replace the values with the specific color
In the editor you must set this column for the color of your value.
- Login or register to post comments
Thank you for sharing this information, this post is very useful
Best,
Hi,
please also have a look to this guide i created some weeks ago with AMZ 2.2.0.1:
You can use customized colors for a pie chart by doing the following:
- At least, you need 3 columns to define your pie chart with your customized colors:
“Criterion” and “KPI” defines the pie chart itself.
“Color” defines the color of the criterion in the pie chart. - In this example we entered the data manually and used the following ones:
.png)

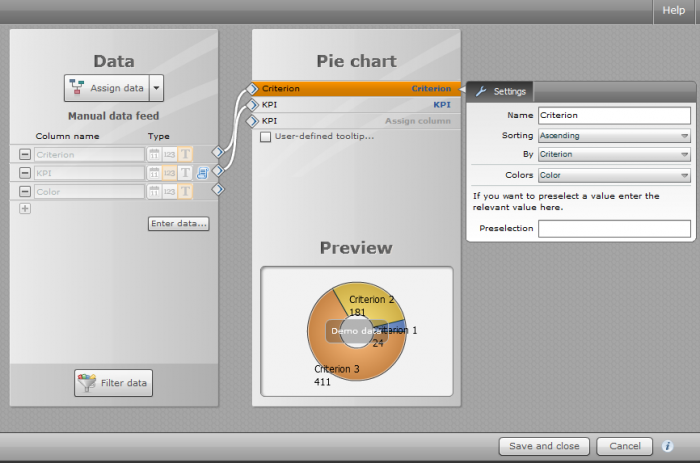

This means that “by bus” will be yellow in the pie chart, “by car” will be blue … - Now, you only have to assign the colors to your data. To do so, go to “Assign Data”-Dialog and assign the data as followed:
Please make sure that the drop down menu “Colors” on the Criterion-Column is set to “Color” - Done!
This chart looks like this:
Please be informed that colors also could have the following format: #RRGGBB. For example #FF0000 stands for “red”.
