Question:
How do I design a query that shows the relationship between "IS Service" (Service Type object) and "SLT" (Capability object) only for a specific LOB (occurring on a specific model) and not all other SLTs that may be associated for that shared "IS Service" in support of other LOBs?
Below is an example:

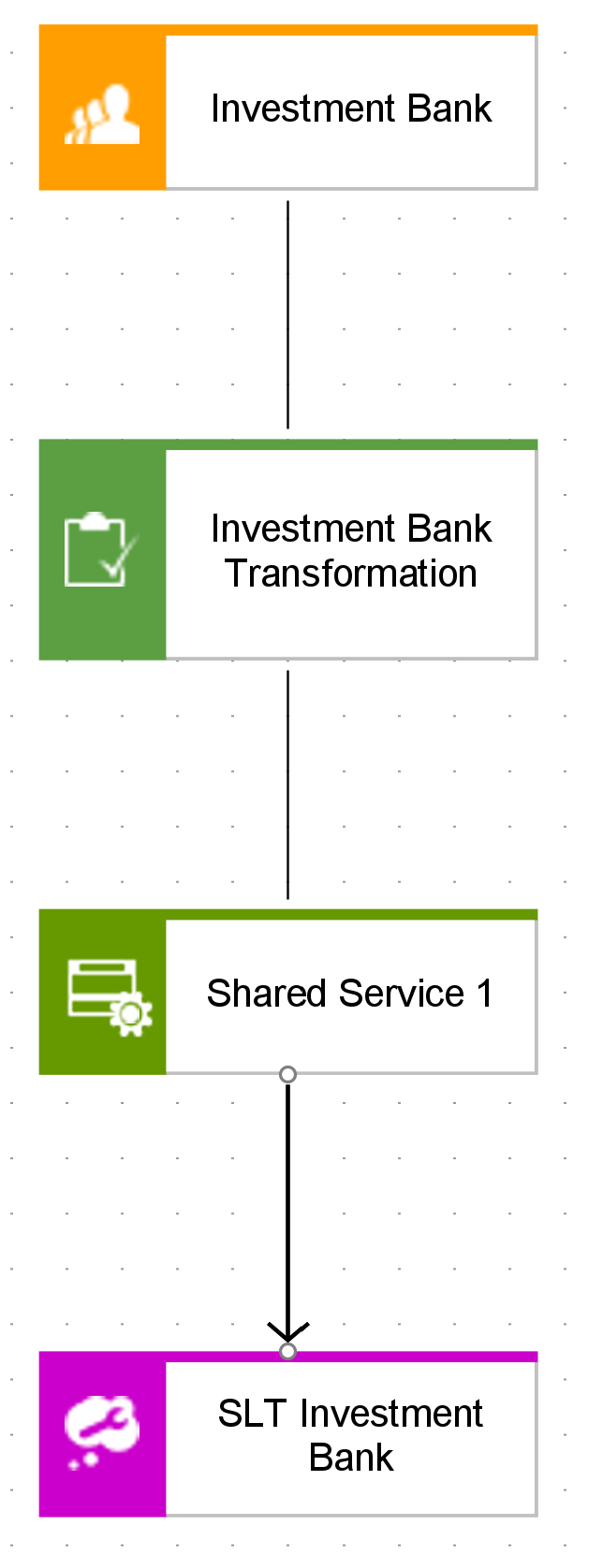

Business Blueprint Diagram 1:
Business Blueprint Diagram 2

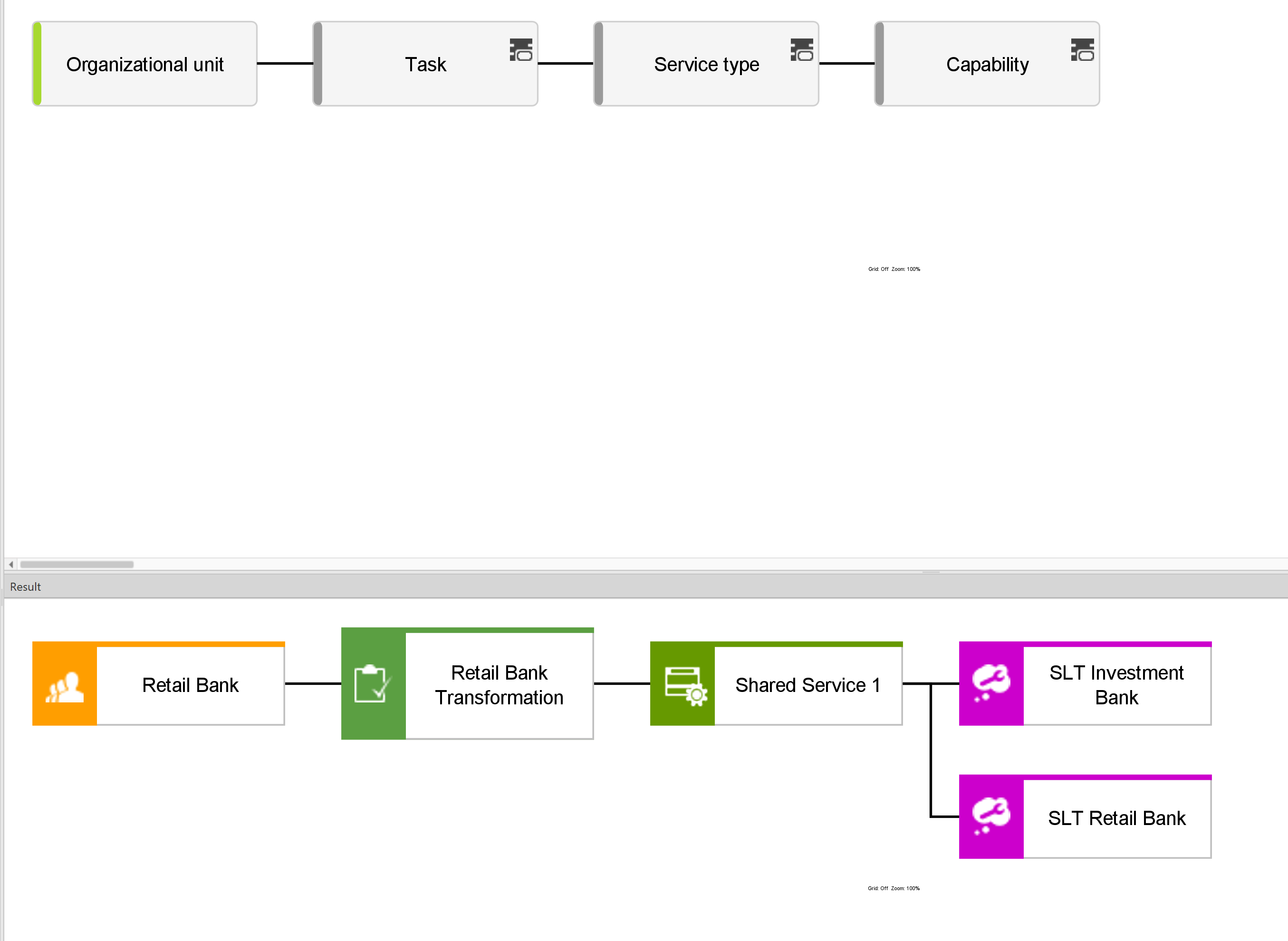

I am creating a query below:
As you can see above, my starting organizational unit is "Retail Bank". I am expecting that for the "Shared Service 1", it will give me the SLT for "Retail Bank". It is showing me all SLTs (SLT Investment Bank and SLT Retail Bank). What do I need to do so that I only see the SLT for the "Organizational Unit" which was specified as a starting object i.e., Retail Bank?
As a matter of fact "Shared Service 1" is servicing both.
Option 1: change your modelling in the business blueprint, so you let the capabilities support your transformation task directly.
Option 2: You do your evaluation on occurrence level. For this you first need a Business Blueprint Diagram model on your query path that gives you the context in which you want to follow the object occurrences. Switch the following steps from Object level to occurrence level.
